Conversion of natural gas

The technology is designed for processing of natural gas to commercial products: liquid engine fuels, alcohols, dimethyl ether, etc. Natural gas at high temperature is mixed with carbon dioxide and steam to form synthesis gas (mixture of carbon monoxide and hydrogen) - raw material for organic synthesis technologies (Fischer-Tropsch synthesis, oxo synthesis). The ratios of components at the inlet are selected to ensure the desired ratio of H2 / CO at the outlet. The technology features allow to vary this parameter in a wide range.



Main advantages:

  • Ability to create small-tonnage production;
  • Degree of natural gas conversion of above 98%;
  • Сonversion of reaction products to useful reaction products (selectivity) over 98%;
  • Compactness of the process equipment;
  • Absence of catalyst;
  • Possibility of obtaining the desired ratio of components of useful reaction products.

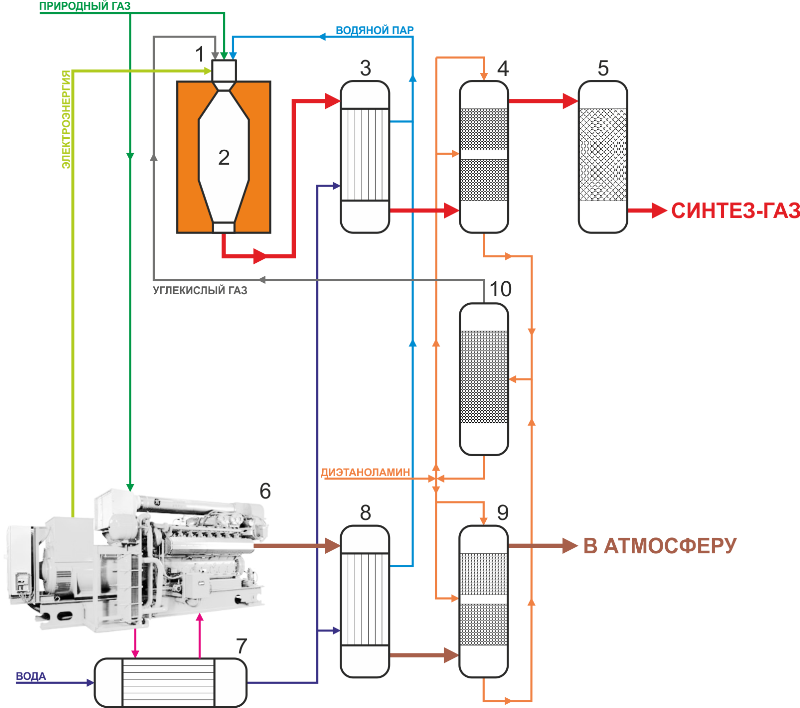

Scheme of natural gas conversion

схема

1 - generator of high temperature component flow;
2 - reaction chamber;
3 - steam generator;
4 - absorber of carbon dioxide;
5 - filter;
6 - electricity generator;
7 - heat exchanger;
8 - steam generator;
9 - absorber of carbon dioxide;
10 - desorber of carbon dioxide.
























Generator of high temperature component flow

генератор



Comparison with traditional methods

Conversion parameters

Conversion methods

 Partial oxidation

   Steam conversion
on catalysts

Proposed «CTG»

Mixture

 Carbon dioxide

 Secondary blowing, kg/kg

O2: 1-1,3

H2O: 0,6-0,7

Н2О – 2,3

CO2 – 0,576

H2O – 0,887

CO2 – 2,75

 Outlet temperature, K

850-1100

1200

1500

1500

 Power inputs per kg of methane, kW∙h/kg

6,5

6,9

9,0

 Yield of dry gas, kg/kg

1,8-2,1

2,12

1,8-2,5

3,75

 [H2]/[CO]

1,8-2,24

3,0

1-3

1,0

 Calorific value, MJ/kg

23,7

33

27,3

18,9

 Conversion degree, %

95 — 99

75 – 90

95 – 100

95 – 100

 Chemical efficiency, %

81

88

85

82

 Pre-reforming of higher hydrocarbons

+

+

 Hydrogenation of organic compounds

+ (кат)

+

 Removal of HCN (without water shift reactor)

+ (воздух)



Minimum output for natural gas — 345 kg / day.

Minimum output on synthesis gas — 935 kg / day.

Power consumption — 500 kW.



The estimated cost of the installation is 2 million USD.

Project implementation period — 18 months.
