RAIL TANKER

INTERNAL WASHING

COMPLEXES

FROM BITUMEN

KVO-JСb

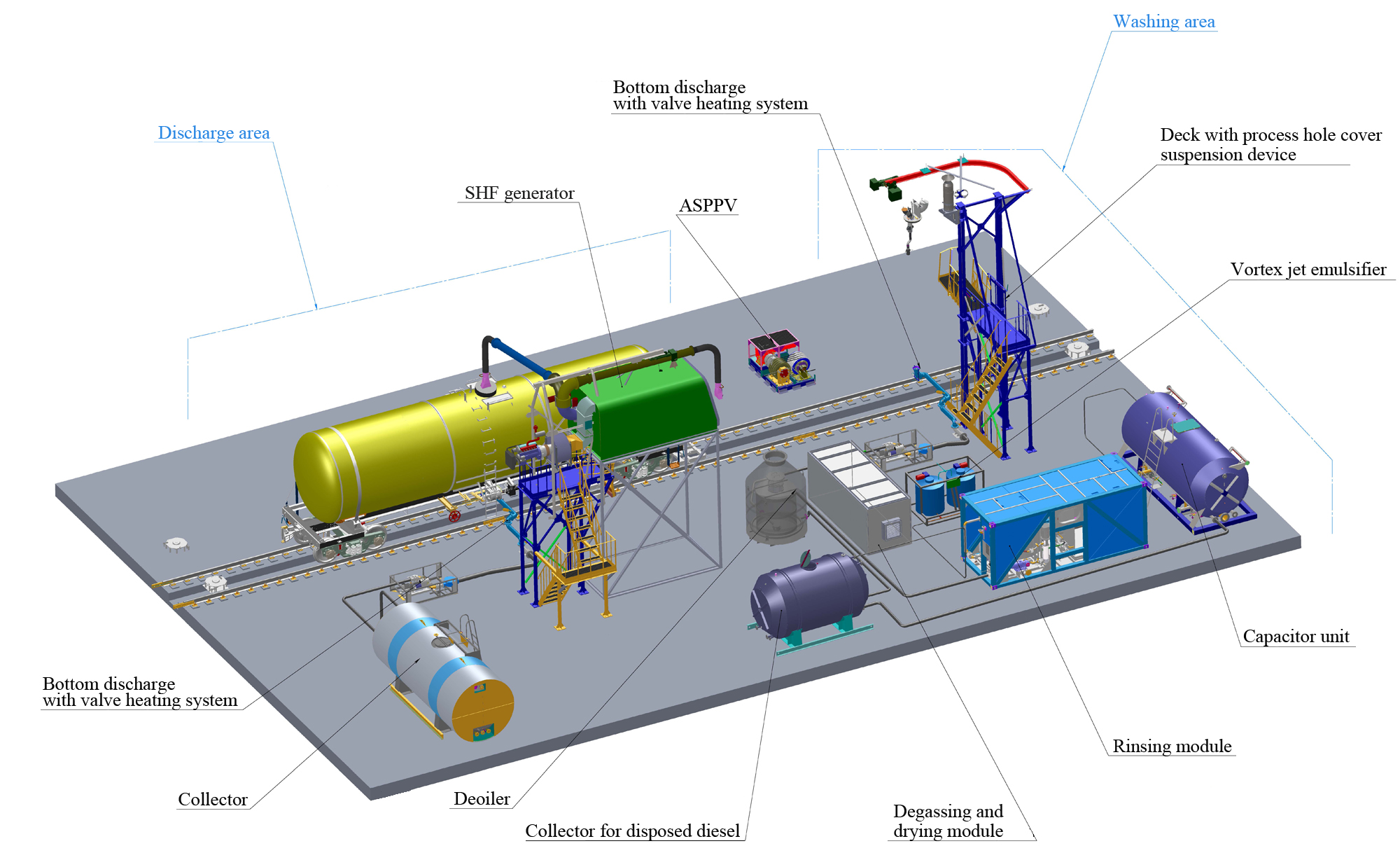

TheKVO-JСb complex is designed to clean the inside surfaces of the railway tankers from bitumen in the resource-saving environmentally safe closed mode.

Cleaning of tanker internal surfaces from the bitumen is a challenging task, and its solution is very different from other products cleaning methods. Developed by «CTG» tank cleaning technology involves several complicated steps using high-frequency installation and diesel fuel and aqueous solution of «O-BISM» detergent treatment. At the final stage the tanker is degassed and dried.


КВО-ЖЦб


Specifications of the

complex KVO-JСb

№

Technical characteristics

Unit of
  measurement

Value

 1.

 Efficiency

units/day

6

 2.

 Minimal dimensions of site for placement of equipment

   - length
   - width

mm



   30000
9000

 3.

 Installed electrical power

kW

116,00

 4.

 Water consumption for technical needs

m3/day

0,45

 5.

 Coolant consumption

GCal/day

1,08

 6.

 Compressed air consumption

m3/day

1,28
 7.

 Number of service stuff

person/shift

2







If you have questions about our equipment, please contact us, our coordinates are listedon the contact page, andalsoviathe order form.
