RAIL TANKER
INTERNAL WASHING
COMPLEXES
FROM VEGETABLE OILS
KVO-JCmr

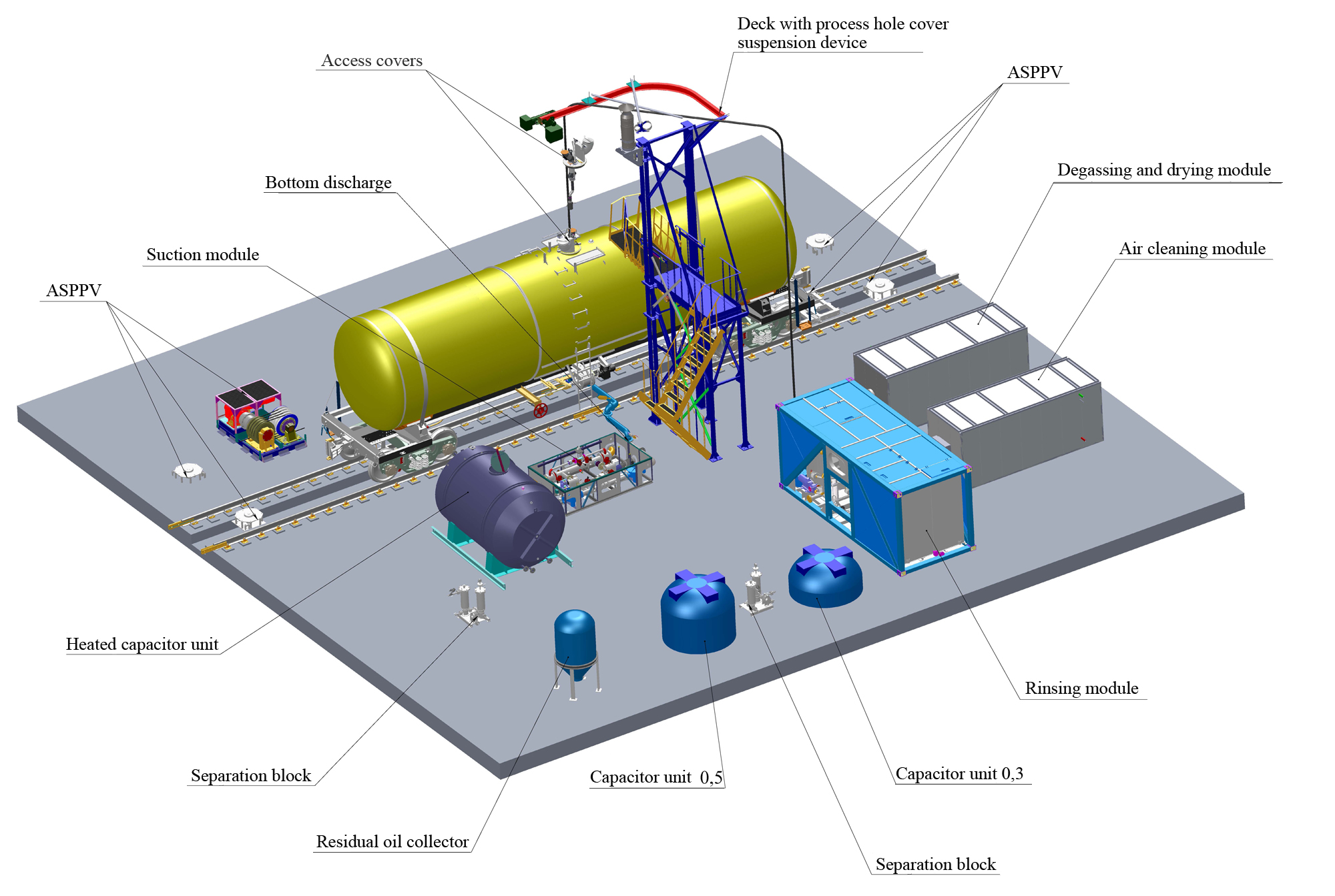

The KVO-JCmr complex is designed to clean the inside surfaces of the railway tankers from vegetable oils in the resource-saving environmentally safe closed mode.
«CTG» has developed an effective cleaning technology with two stages based on the physicochemical properties of the vegetable oils and the requirements for the tanks in use.
At the first stage the contaminated tankers are washed with the aqueous solution of «O-BISM» detergent and rinsed. In the second stage the tankers are dried and cooled.
The KVO-JCmr complexes can have various efficiency, equipment and the automation degree of technological processes.
Specifications of the
complex KVO-JCmr
|
№ |
Technical characteristics |
Unit of |
Value |
| 1. |
Efficiency |
units/day |
25 |
|
2. |
Minimal dimensions of site for placement of equipment - length |
mm |
30000 |
|
3. |
Installed electrical power |
kW |
120,00 |
|
4. |
Water consumption for technical needs |
m3/day |
1.87 |
|
5. |
Coolant consumption |
GCal/day |
3,00 |
|
6. |
Compressed air consumption |
m3/day |
1,48 |
|
7. |
Number of service stuff |
person/shift |
2 |
