RAIL TANKER

INTERNAL WASHING

COMPLEXES

FROM LIQUEFIED PETROLEUM GAS

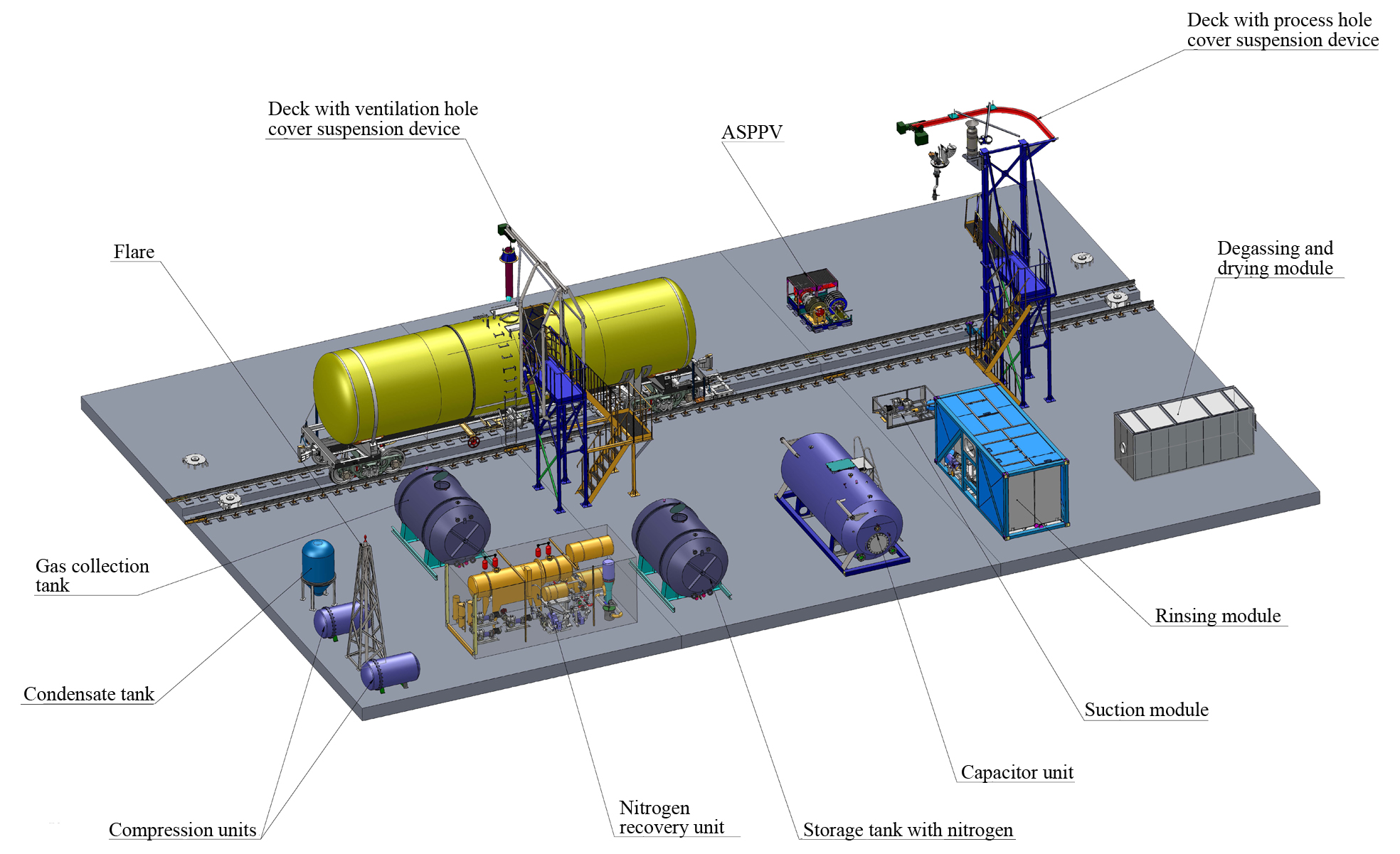

KVO-JCsug

The KVO-JCsug complex is designed to clean the inside surfaces of the railway tankers from liquefied petroleum gas in the resource-saving environmentally safe closed mode.

The process of tanker cleaning from the LPG includes two stages. During the first stage the tanker is degassed, and the gas is stored in a special container. After this treatment the tanker can be sent for roundhouse servicing. During the second stage the tanker is washed with an aqueous solution of «O-BISM» detergent, degassed and dried. After this stage the tanker is ready for the overhaul and inspection.


КВО-ЖЦсуг





Specifications of the

complex KVO-JCsug

Technical characteristics

Unit of
  measurement

Value

 1.

 Efficiency

units/day

12

 2.

 Minimal dimensions of site for placement of equipment

   - length
   - width



mm



36000
9000

 3.

 Installed electrical power

kW

94.00

 4.

 Water consumption for technical needs

m3/day

up to 1,0

 5.

 Coolant consumption

GCal/day

2.4

 6.

 Compressed air consumption

m3/day

4.6

 7.

 Number of service stuff

person/shift

2







If you havequestions aboutourwashingcomplexes, please contact usour coordinates are listedon the Contact page, andalsoviathe order form.
