RAIL CARS WASHING COMPLEXES

OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)

«CTG» company develops and successfully introducers more than 17 years modern technologies of washing of passenger rolling stock and locomotives cars bodies. Unlike similar proposals by foreign companies (domestic analogues are not available) the proposed "CTG" complexes have the following advantages:

significantly lower investments in process engineering equipment;
the possibility of washing roofs, frames of trolleys and windows;
reinforced processing cascades(wetting, intensive washing and rinsing) of side surfaces and roof slopes of car bodies;
technological process is organized in resource efficient environmentally safe closed mode;
every contour is equipped with its own closed purification system of water solution, ensuring resource saving and environmental security of technological process;
contour modularity providing depending on the tasks with possibility to manipulate "architecture" of washing complex structure (VMK).

CAR WASHING COMPLEXES

FOR RAILWAY PASSENGER ROLLING STOCK,

INCLUDING UNDERGROUND AND ELECTRIC TRAINS

OF TUNNEL TYPE

VMK-T

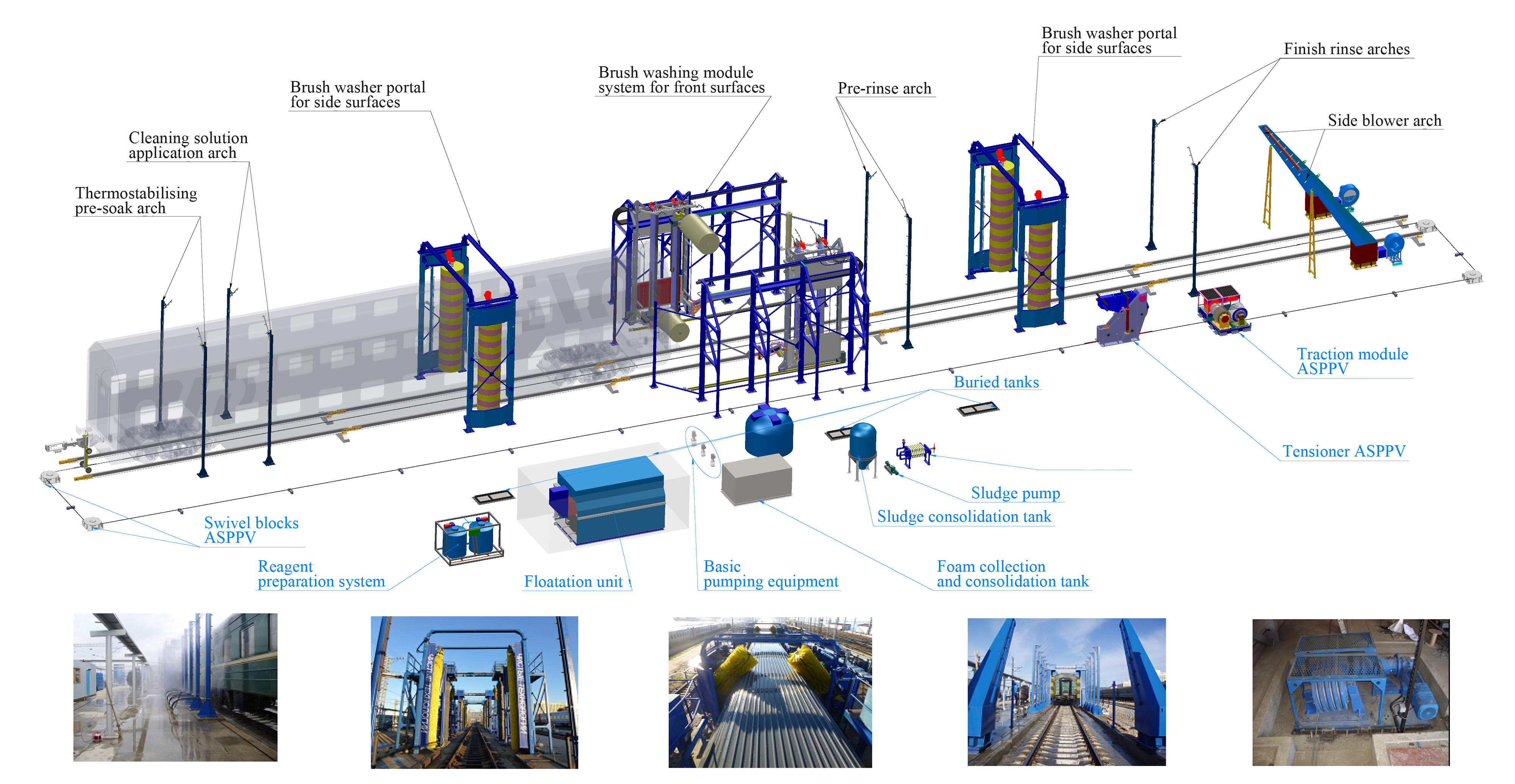

Car washing complex of tunnel type VMK-T is designed for washing of external surfaces of different rail cars of railway transport rolling stock (single- and double-deck passenger cars, electric trains of different configurations) and underground. It is characterized with high capacity.

Washing equipment is installed permanently. Process of cars external surfaces washing is performed when the train is passing through the car washing complex at a speed of up to 2 km/h.

Railway car wash complex for single-deck passenger car wash (Adler)

Constantly improving its products, «CTG» bearing in mind the needs of clients, is manufacturing railway cars washing complexes since 2013 allowing washing of double-deck passenger cars.

Railway car wash complex for double-deck passenger car wash in the city of Adler after reconstruction

Other pictures of reconstruction of railway car wash complex in the city of Adler see in our photo gallery.

Technical characteristics of

VMK-T complex (for single-deck passenger car wash)

№	Technical characteristics	Unit of measurement	Value
1.	Efficiency	units/day	up to 200
2.	Dimensions of the washing plant space: - length - width - height	mm	60000 9000 7500
3.	Dimensions of the recycling water supply wastewater treatment plant space: - length - width - height	mm	36000 6000 6000
4.	Installed electrical power	kW	110,00
5.	Water consumption for technical needs	m³/day	14,00
6.	Coolant consumption	GCal/day	3,10
7.	Compressed air consumption	m³/day	4,80
8.	Maintenance manpower	person/shift	3

CAR WASHING COMPLEXES

FOR RAILWAY PASSENGER ROLLING STOCK,

INCLUDING UNDERGROUND AND ELECTRIC TRAINS

PORTAL TYPE

VMK-P

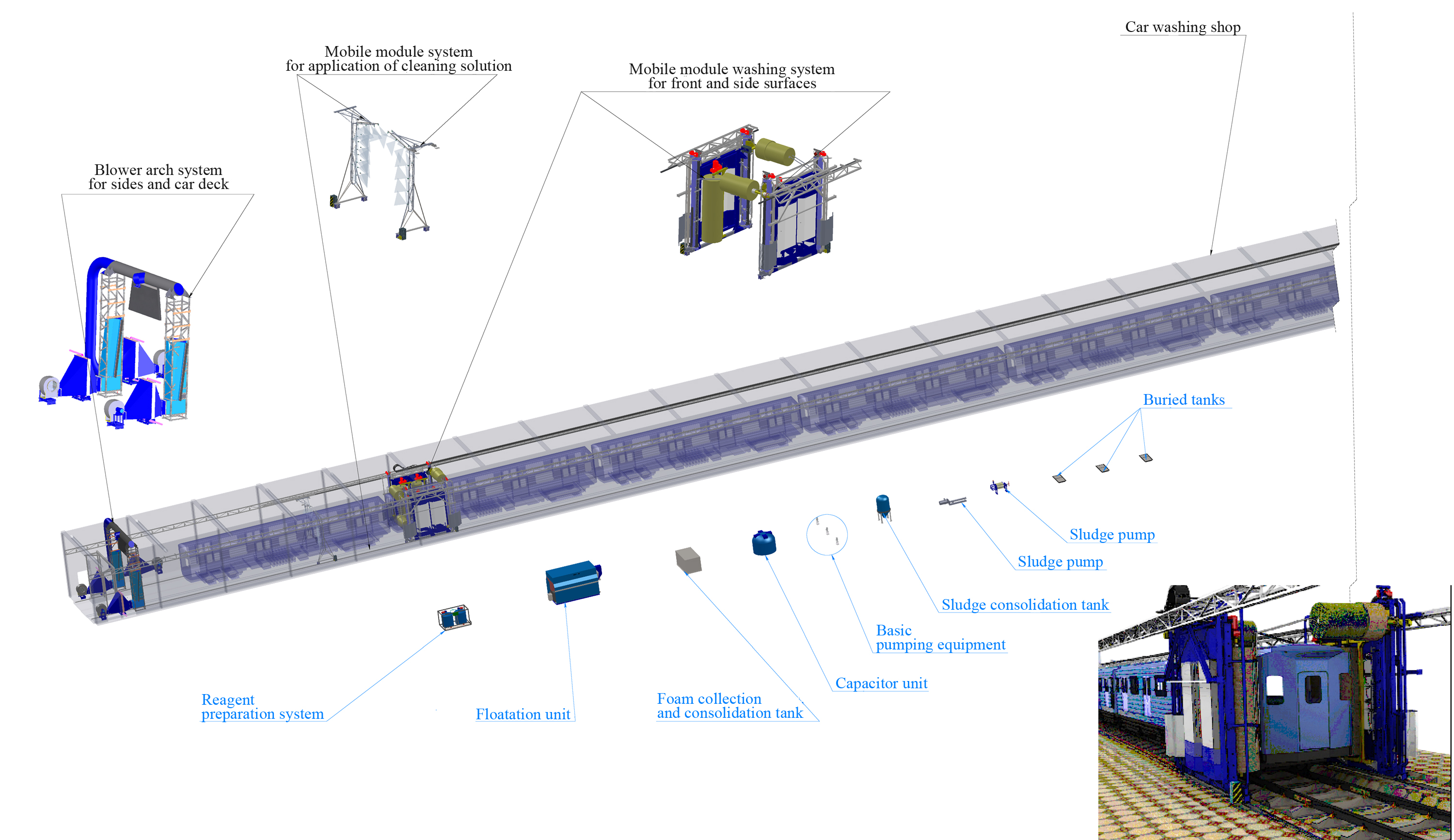

Car washing complex for washing of external surfaces of different rail cars of railway transport rolling stock VMK-P is applied when needed washing of stationary wagon or train for example, directly on one of the ways of repair depot before it repairs and painting.

Basic operations for car washing are performed by self propelled modular systems moving by additional rails.

ВМК-П

Technical characteristics of

VMK-P complex

№	Technical characteristics	Unit of measurement	Value
1.	Efficiency	units/day	up to 160
2.	Dimensions of the washing plant space: - length - width - height	mm	162000 7900 6000
3.	Dimensions of the recycling water supply wastewater treatment plant space: - length - width - height	mm	36000 6000 6000
4.	Installed electrical power	kW	155,00
5.	Water consumption for technical needs	m³/day	10,00
6.	Coolant consumption	GCal/day	2,40
7.	Compressed air consumption	m³/day	4,50
8.	Maintenance manpower	person/shift	3

CAR WASHING COMPLEXES

FOR RAILWAY PASSENGER ROLLING STOCK,

INCLUDING UNDERGROUND AND ELECTRIC TRAINS

MANUALLY CONTROLLED

VMK-na

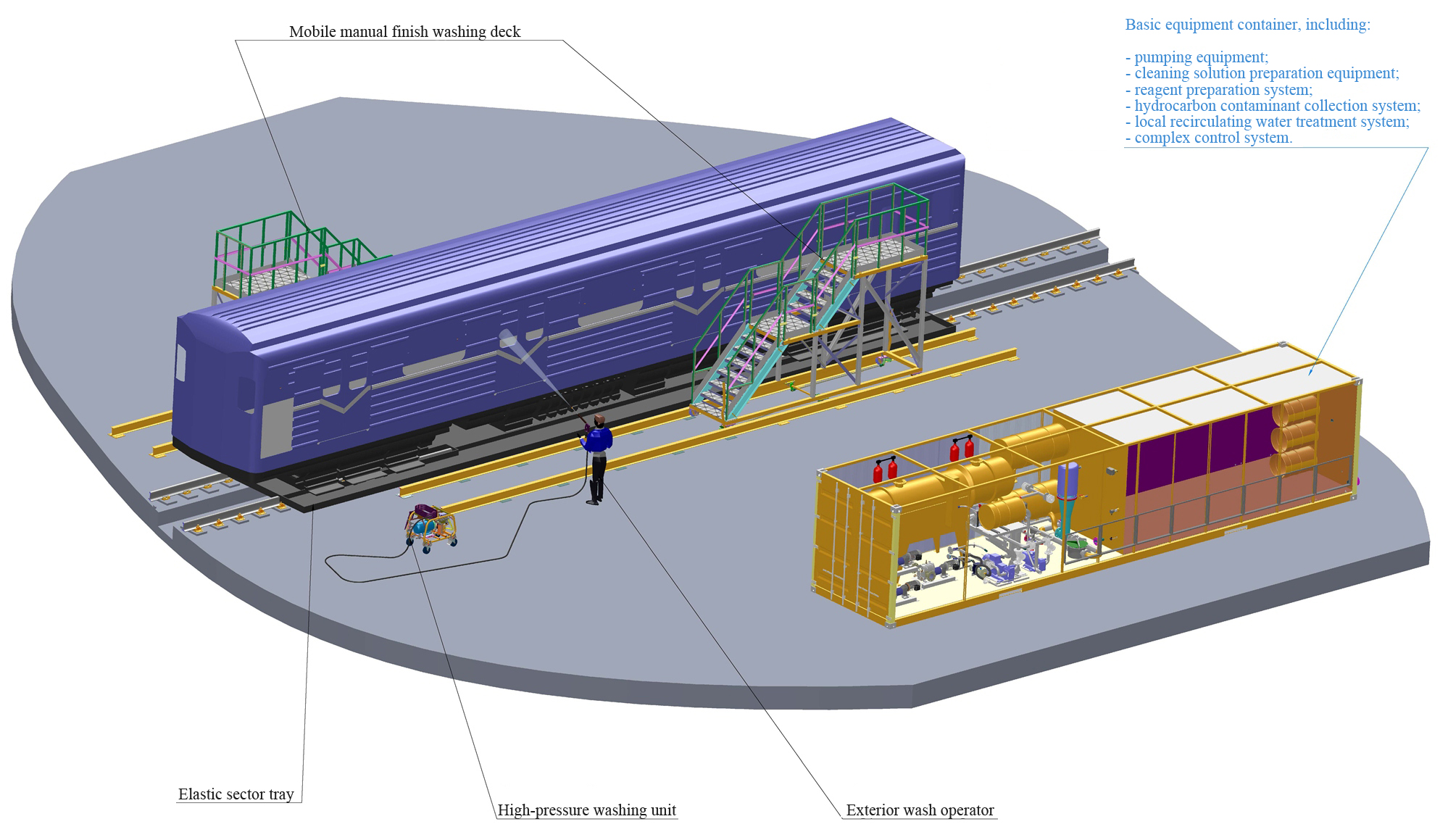

Car washing complex VMK-na is designed for manual washing of external surfaces of rail cars of railway transport rolling stock and can be applied for locomotives of hood type, freight cars, tank-cars, passenger cars and electric train cars before their repair or painting. Detergent application, high pressure washing, rinsing are performed manually.

To comply with standards of water consumption and water removal, as well as water saving the complex includes recycling water treatment plant module.

ВМК-Р

Technical characteristics of

VMK-na complex

№	Technical characteristics	Unit of measurement	Value
1.	Efficiency	units/day	up to 40
2.	Dimensions: - length - width - height	mm	36000 12000 6000
3.	The installed capacity of electric equipment	kW	80,00
4.	Water consumption for technical needs	m³/day	up to 2,5
5.	Coolant consumption	GCal/day	3,00
6.	Compressed air consumption	m³/day	1,98
7.	Maintenance manpower	person/shift	2
