VEHICLE WASHING COMPLEX

OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR BUSES

TUNNEL TYPE

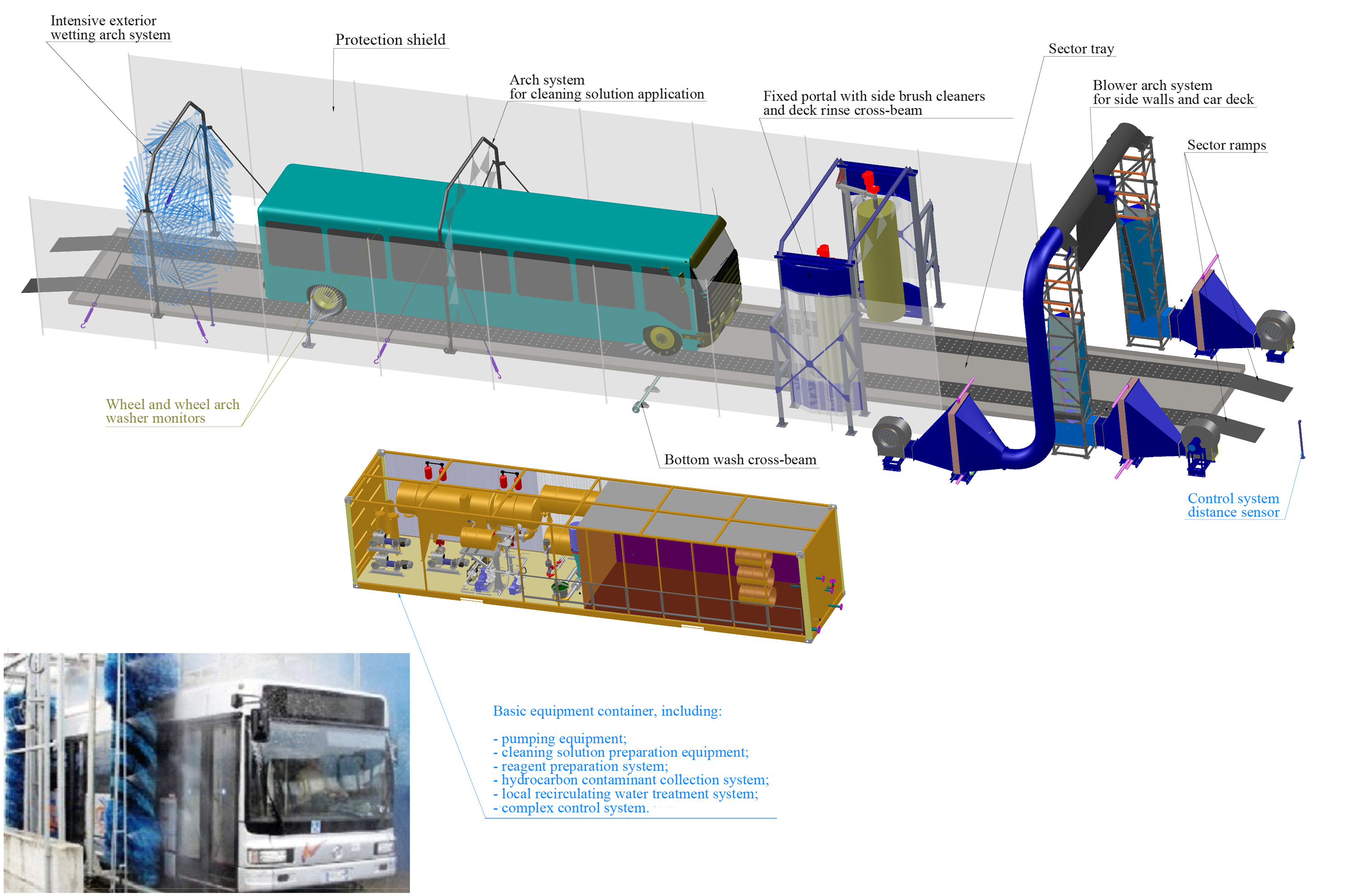

AMK-АТ

Vehicle washing complex equipment for buses external surfaces washing of tunnel type AMK-АТ is installed permanently. Buses are moving through the complex by themselves with stops at the required places moving speed is up to 2 km/h. To ensure safety the complex is equipped with restrictors, providing vehicles move for a given path.

For year-round operation the equipment is installed in a heated room, however, for seasonal (summer) operation can be made with special design and installed outdoors.



АМК-АТ



Technical characteristics of

АМК-АТ complex

 №

Technical characteristics

Unit of
  measurement

  Value

 1.

 Efficiency

units/day

  up to 200

 2.

 Dimensions:

 - length
 - width
 - height

mm



36000
12000
6000

 3.

 Installed electrical power

kW

110,00

 4.

Water consumption for technical needs

m3/day

25,00

 5.

Coolant consumption

GCal/day

3,00

 6.

Compressed air consumption

m3/day

1,98

 7.

Maintenance manpower

person/shift

2





VEHICLE WASHING COMPLEX

OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR BUSES

PORTAL TYPE

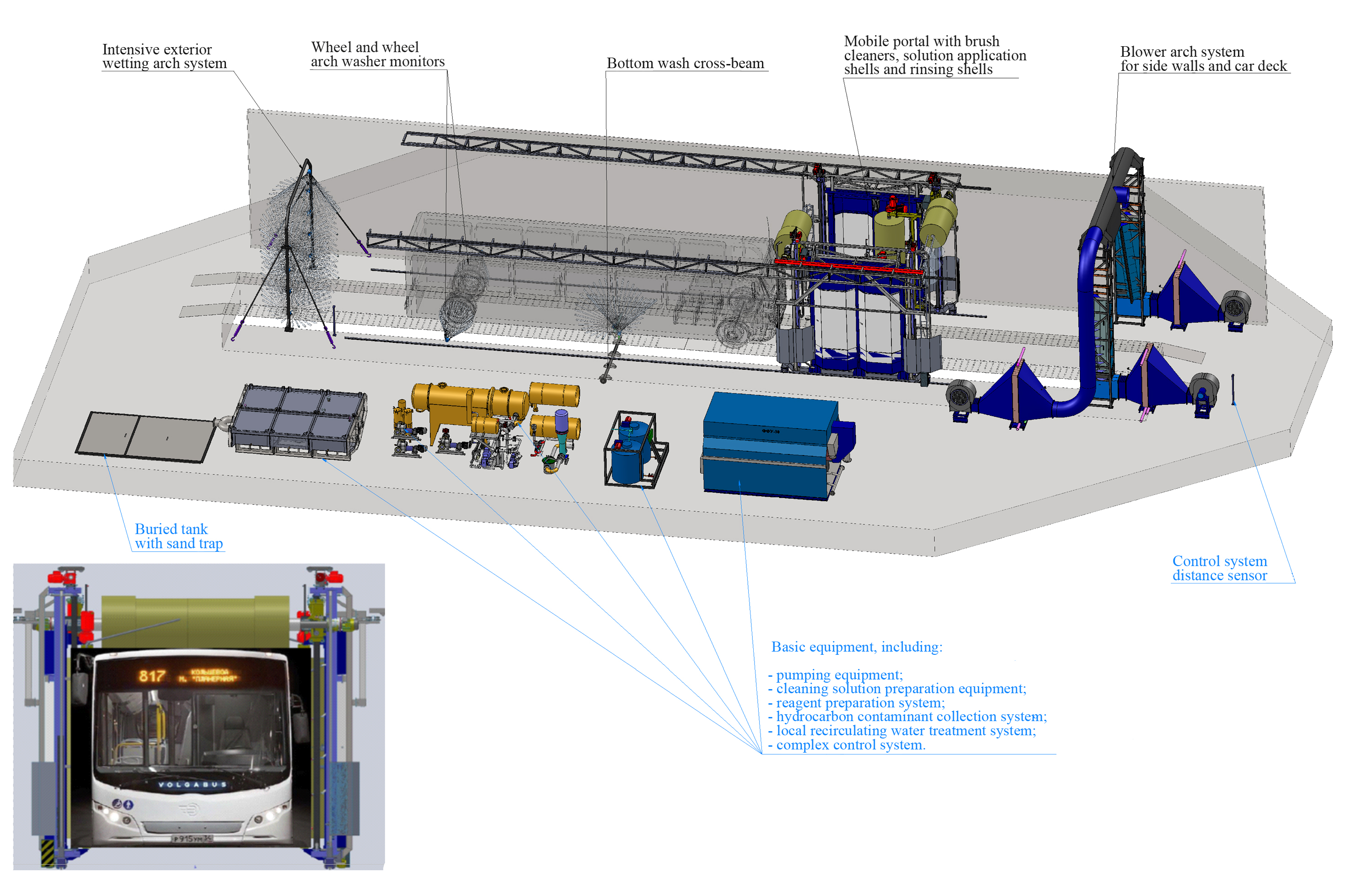

AMK-AP

AMK-АP is designed for washing buses external surfaces. Main operations are carried out by self propelled gantry due to which high quality of surfaces cleaning, including front-end, is provided. If necessary, for specific bus models roofs washing is possible.

For year-round operation the equipment is installed in a heated room, however, for seasonal (summer) operation can be made with special design and installed outdoors.

АМК-АП



Technical characteristics of

AMK-AP complex

  №

Technical characteristics

Unit of
  measurement

 Value

1.

 Efficiency

units/day

  Up to 100

 2.

 Dimensions:

   - length
   - width
   - height

mm



42000
12000
6000

 3.

 Installed electrical power

kW

165,00

 4.

 Water consumption for technical needs

m3/day

12,00

 5.

 Coolant consumption

GCal/day

1,50

 6.

 Compressed air consumption

m3/day

0,85

 7.

 Maintenance manpower

person/shift

2







If you have questions about our washing complexes, please contact usour coordinates are listedon the contact page, andalsoviathe order form.
