| Effectively, Economically, Ecologically - Up-to-Date |

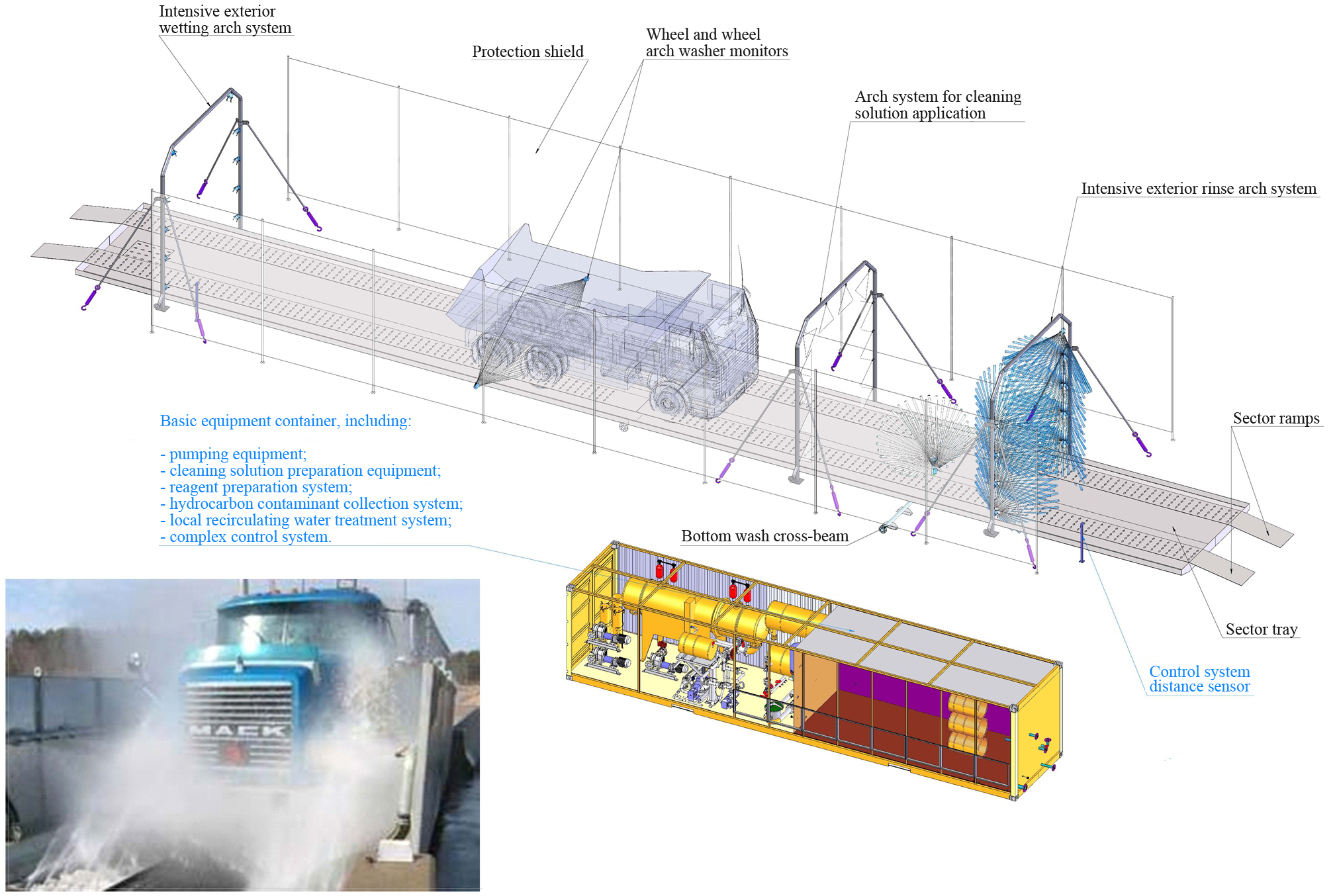

VEHICLE WASHING COMPLEX
OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)
FOR TRUCKS
OF TUNNEL TYPE
AMK-GT
Vehicle washing complex equipment for commercial vehicles external surfaces washing of tunnel type AMK-GT is installed permanently. Commercial vehicles are moving through the complex by themselves with stops at the required places Moving speed is up to 2 km/h. To ensure safety the complex is equipped with restrictors, providing vehicles move for a given path. For year-round operation the equipment is installed in a heated room, however, for seasonal (summer) operation can be made with special design and installed outdoors.
Technical characteristics of
AMK-GT complex
|
№ |
Technical characteristics |
Unit of |
Value |
| 1. |
Efficiency |
units/day |
up to 200 |
| 2. |
Dimensions: - length |
mm |
36000 |
| 3. |
Installed electrical power |
kW |
110,00 |
| 4. |
Water consumption for technical needs |
m3/day |
25,00 |
| 5. |
Coolant consumption |
GCal/day |
3,00 |
| 6. |
Compressed air consumption |
m3/day |
1,98 |
| 7. |
Maintenance manpower |
person/shift |
2 |

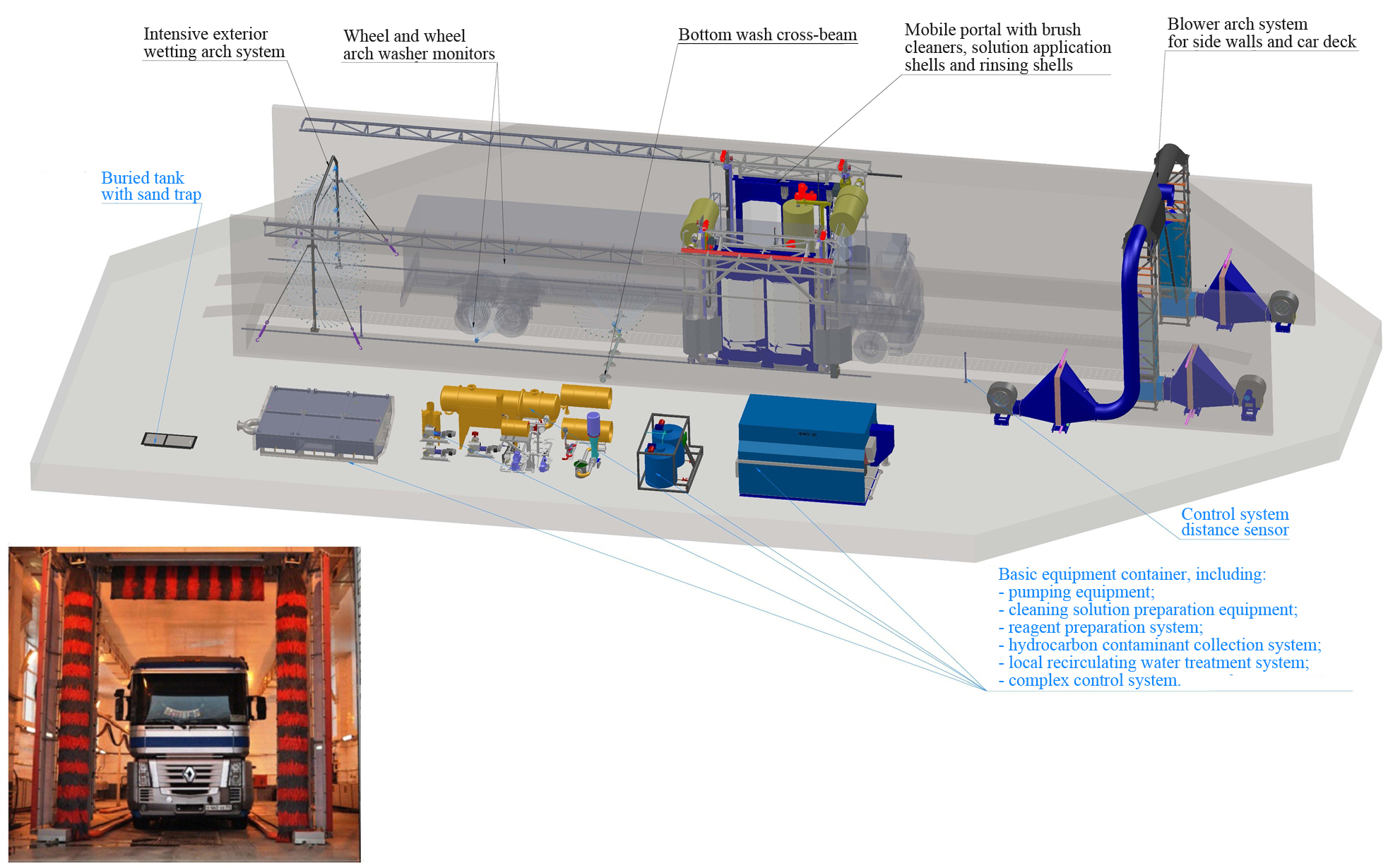

VEHICLE WASHING COMPLEX
OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)
FOR TRUCKS
OF PORTAL TYPE
AMK-GP
AMK-GP complex is designed for washing commercial vehicles external surfaces. Main operations are carried out by self propelled gantry due to which high quality of surfaces cleaning, including front-end, is provided.
For year-round operation the equipment is installed in a heated room, however, for seasonal (summer) operation can be made with special design and installed outdoors.
Technical characteristics of
AMK-GP complex
|
№ |
Technical characteristics |
Unit of |
Value |
| 1. |
Efficiency |
units/day |
up to 100 |
| 2. |
Dimensions: - length |
mm |
24000 |
| 3. |
Installed electrical power |
kW |
130,00 |
| 4. |
Water consumption for technical needs |
m3/day |
12,00 |
| 5. |
Coolant consumption |
GCal/day |
1,50 |
| 6. |
Compressed air consumption |
m3/day |
0,85 |
| 7. |
Maintenance manpower |
person/shift |
2 |
If you have questions about our washing complexes, please contact us, our coordinates are listedon the contact page, andalsoviathe order form.
