VEHICLE WASHING COMPLEX

EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR PASSENGER CARS

OF TUNNEL TYPE

AMK-LT

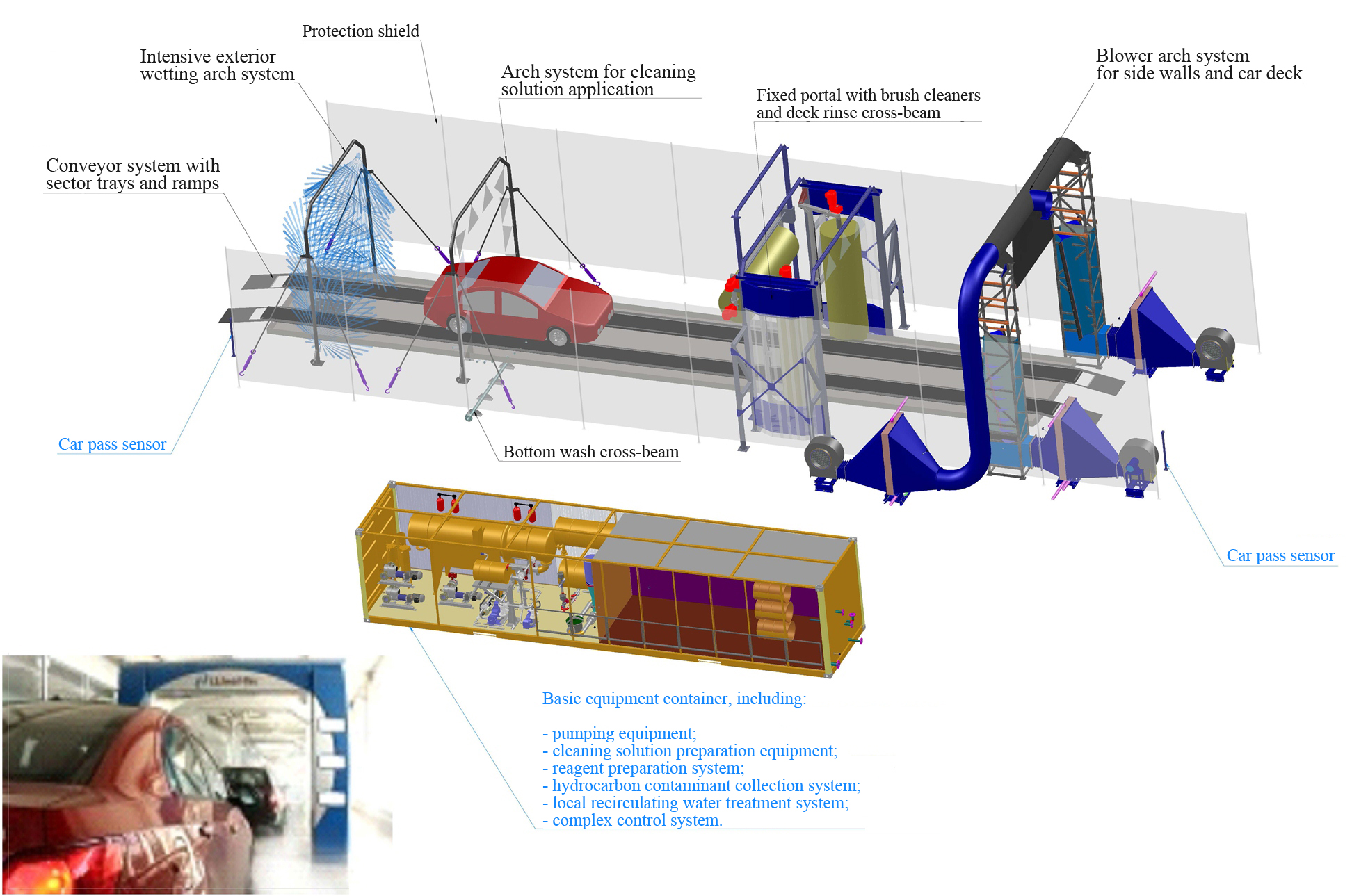

Vehicle washing complex equipment for passenger cars external washing of tunnel type AMK-LT is installed permanently. The complex is equipped with a conveyor belt, which moves cars through the processing arches due to which high performance of this complex is provided. The best treatment quality is guaranteed by the use of high-efficiency detergents. At the first stage, bodies are processed with water under high pressure to remove particles of sand, which can damage during subsequent brush handling. Brushes are made of soft pile, and automatic system when they are driving on the car body provides safety of the attached equipment.

Technical characteristics of

AMK-LT complex

№	Technical characteristics	Unit of measurement	Value
1.	Efficiency	units/day	up to 70
2.	Dimensions: - length - width - height	mm	20000 7000/12000 3500
3.	Installed electrical power	kW	140,00
4.	Water consumption for technical needs	m3/day	77,00
5.	Coolant consumption	GCal/day	4,62
6.	Compressed air consumption	m3/day	4,7
7.	Maintenance manpower	person/shift	2

VEHICLE WASHING COMPLEX

EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR PASSENGER CARS

OF PORTAL TYPE

AMK-LP

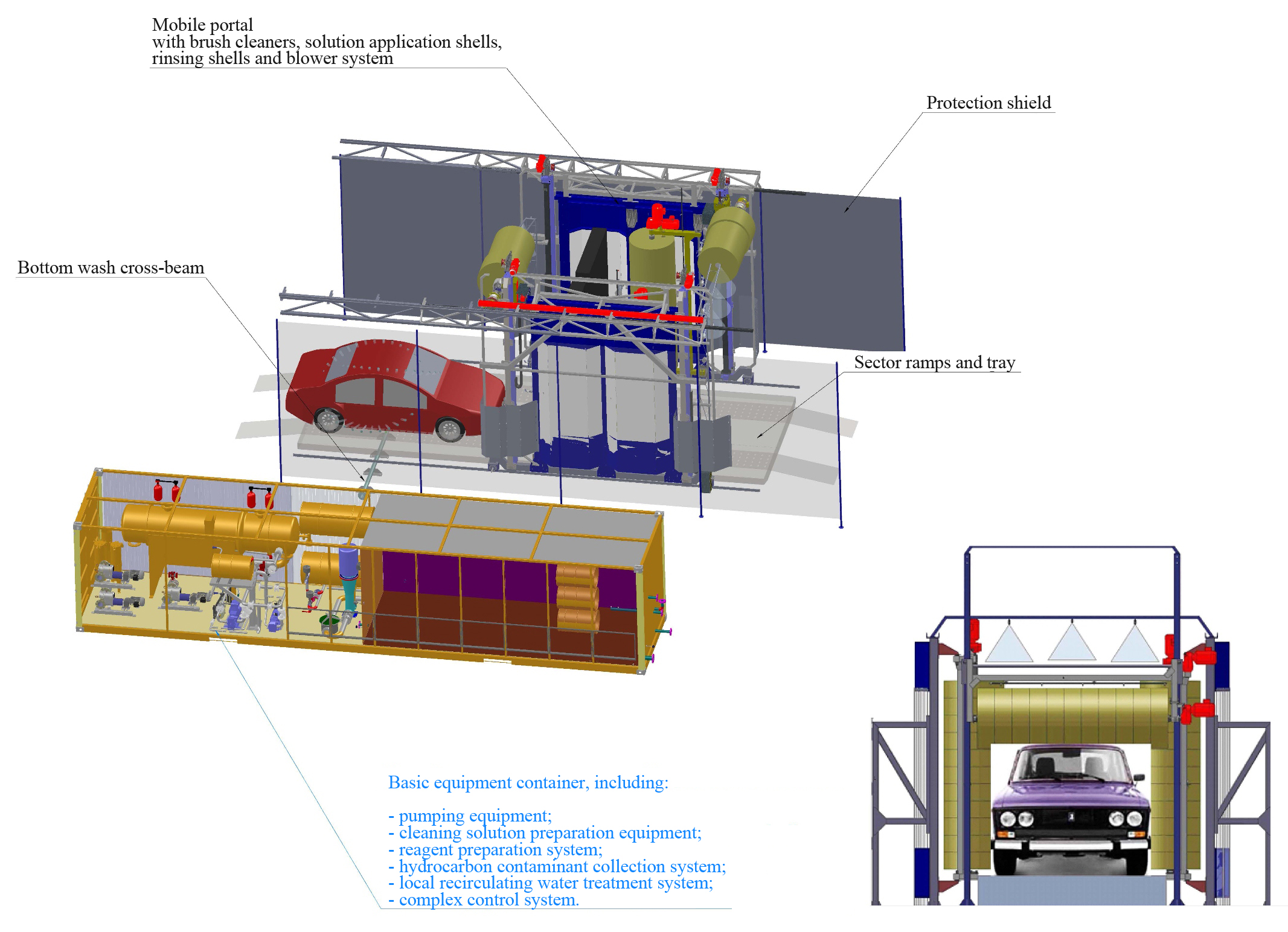

AMK-LP complex is designed for washing passenger cars external surfaces. All operations of detergents application, brush processing, rinsing and moisture blowing are carried out by self propelled gantry due to which high quality of cleaning is provided.

For year-round operation the equipment is installed in a heated room, however, for seasonal (summer) operation can be made with special design and installed outdoors.

Technical characteristics of

AMK-LP complex

№	Technical characteristics	Unit of measurement	Value
1.	Efficiency	units/day	up to 120
2.	Dimensions: - length - width - height	mm	36000 7000/12000 3500
3.	Installed electrical power	kW	80,00
4.	Water consumption for technical needs	m3/day	12,00
5.	Coolant consumption	GCal/day	1,50
6.	Compressed air consumption	m3/day	0,85
7.	Maintenance manpower	person/shift	2

If you have questions about our washing complexes, please contact us, our coordinates are listedon the contact page, andalsoviathe order form.
