PRODUCTION

VEHICLE WASHING COMPLEX

OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR SPECIAL TRANSPORT

(UNDERCARRIAGE OF CONSTRUCTION MACHINERY)

OF TUNNEL TYPE

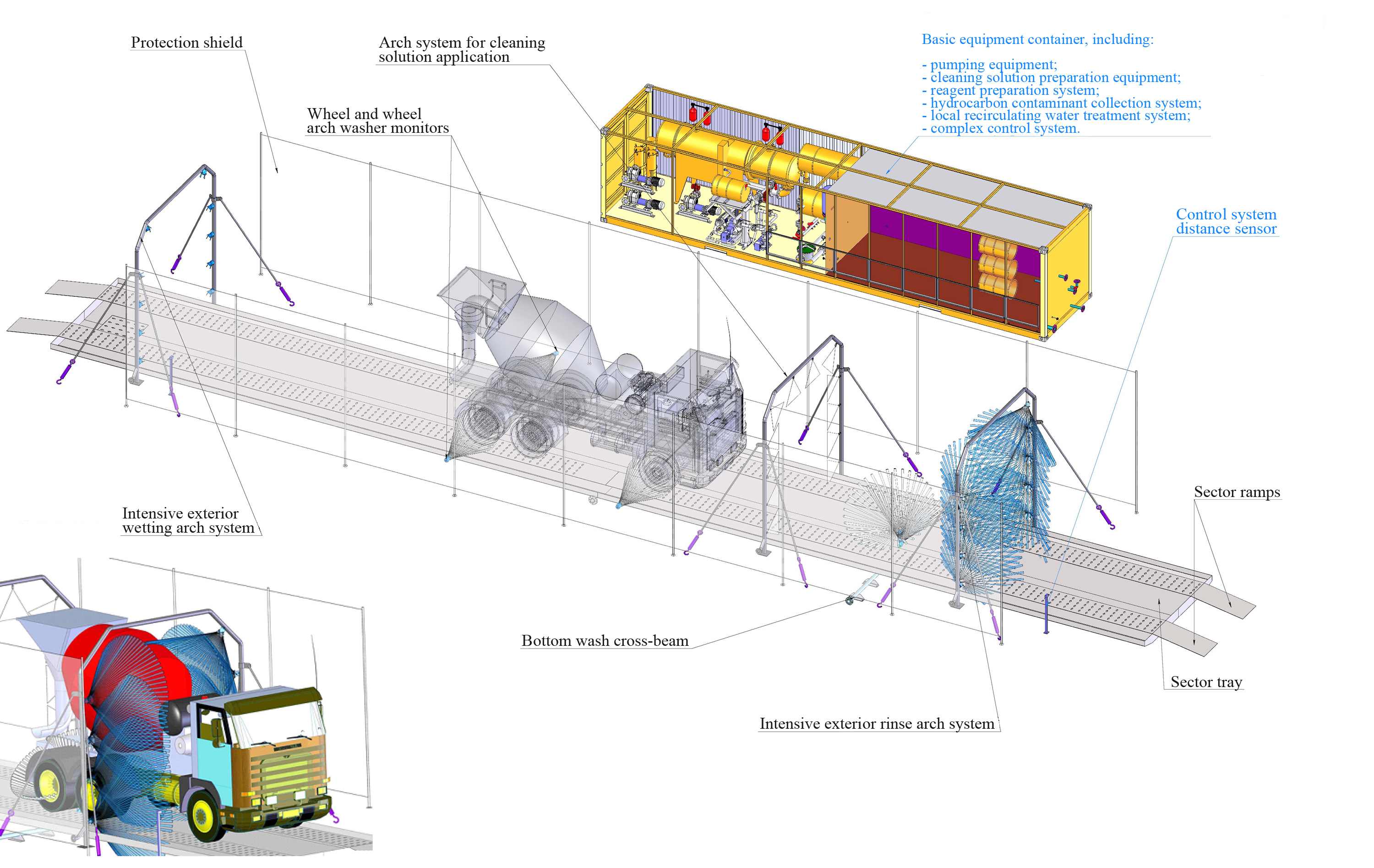

AMK-ST

Vehicle washing complex for undercarriage of construction machinery AMK-ST is a mobile equipment with the possibility of rapid transportation, mounting and dismounting. It is designed for washing of undercarriage of construction machinery and is applied in cases where it is necessary to promptly remove coarse dirt, for example when leaving the construction site, which will ensure compliance with requirements of local authorities.

Vehicles are moving through the complex by themselves with stops at the required places to ensure safety the complex is equipped with restrictors, providing vehicles move for a given path.

Technical characteristics of

AMK-ST complex

Technical characteristics

Unit of
measurement

Value

1.

Efficiency

units/day

up to 100

2.

Dimensions:

- length
- width
- height

mm

16000
7000/12000
6000

3.

Installed electrical power

kW

80,00

4.

Water consumption for technical needs

m3/day

12,00

5.

Coolant consumption

GCal/day

1,50

6.

Compressed air consumption

m3/day

0,85

7.

Maintenance manpower

person/shift

2

VEHICLE WASHING COMPLEX

OF EXTERNAL CLEANING (WASHING, RINSING, DRYING)

FOR UNDERCARRIAGE OF CONSTRUCTION MACHINERY

OF TUNNEL TYPE

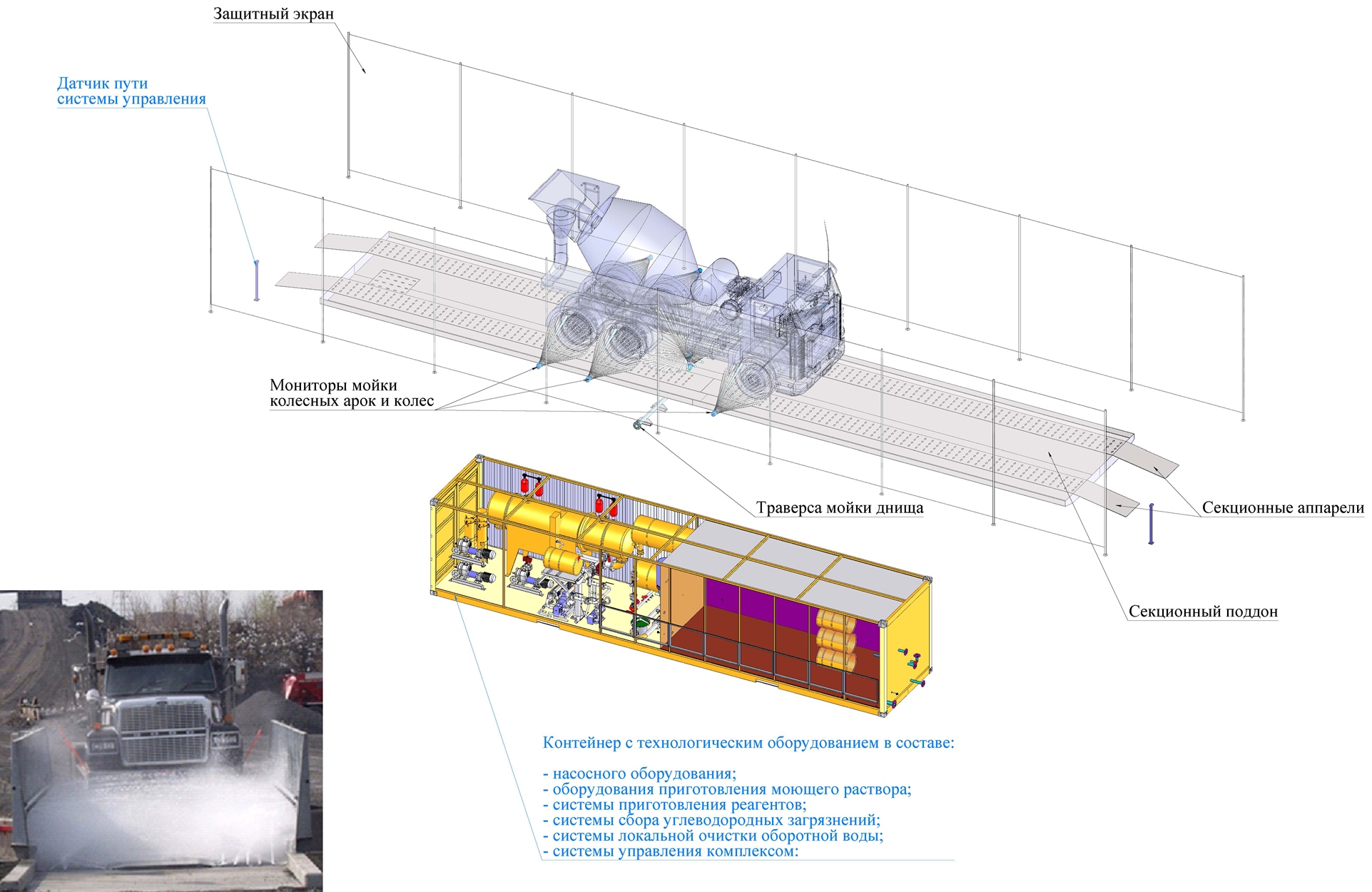

AMK-StT

Vehicle washing complex for undercarriage of construction machinery AMK-StT is a mobile equipment with the possibility of rapid transportation, mounting and dismounting. It is designed for washing of undercarriage of construction machinery and is applied in cases where it is necessary to promptly remove coarse dirt, for example when leaving the construction site, which will ensure compliance with requirements of local authorities.

Vehicles are moving through the complex by themselves with stops at the required places to ensure safety the complex is equipped with restrictors, providing vehicles move for a given path.

АМК-СтТ

Technical characteristics of

AMK-StT complex

Technical characteristics

Unit of
measurement

Value

1.

Efficiency

units/day

up to 200

2.

Dimensions:

- length
- width
- height

mm

36000
12000
6000

3.

Installed electrical power

kW

58,00

4.

Water consumption for technical needs

m3/day

25,00

5.

Coolant consumption

GCal/day

3,00

6.

Compressed air consumption

m3/day

1,98

7.

Maintenance manpower

person/shift

1

If you have questions about our washing complexes, please contact us, our coordinates are listedon the contact page, andalsoviathe order form.
